TEH LH220 20V Brushless SDS Rotary Hammer Drill Starter Kit — 22mm — 4 Functions — 4Ah Battery

TEH LH220 20V Brushless SDS Rotary Hammer Drill — Starter Kit (4Ah)

The TEH LH220 is a professional-grade 20V brushless SDS rotary hammer drill built for tradespeople who need a capable, cable-free hammer drilling solution on site. Driven by a high-performance 48/20 brushless motor with a no-load speed of 0–1,300 RPM and an impact rate of 0–4,600 BPM, the LH220 drills up to 22mm in concrete, 28mm in wood and 13mm in steel with four selectable functions — hammer drill, drill only, chiselling and flat chisel adjustment. The brushless motor delivers greater efficiency, longer service life and reduced maintenance compared to brushed alternatives, making it a reliable choice for demanding masonry work day after day. This 4Ah starter kit includes a high-capacity battery, charger and TEH carry bag — ready to work straight from the box.

Key Features

• 48/20 Brushless Motor — high-performance brushless motor for extended service life, greater efficiency and reduced maintenance on demanding applications
• 22mm SDS Chuck — accepts standard SDS-Plus bits for drilling and chiselling into masonry, brick, block and concrete
• 0–4,600 BPM Impact Rate — fast, efficient penetration into hard masonry and reinforced concrete
• 0–1,300 RPM No-Load Speed — controlled speed for accurate positioning and clean entry holes
• 4 Functions — hammer drill, drill only, chiselling and flat chisel adjustment for maximum versatility on site
• Drilling Capacity — 22mm in concrete, 28mm in wood and 13mm in steel
• 4Ah High-Capacity Battery — longer run time per charge for extended hammer drilling sessions on masonry-heavy work
• Compatible with TEH 20V Battery Platform — works with all TEH LB2.0Ah and LB4.0Ah batteries

Specifications

SpecificationDetailModelLH220VoltageDC 20VMotor48/20 BrushlessChuck Capacity22mm SDS-PlusNo-Load Speed0–1,300 RPMImpact Rate0–4,600 BPMMax Drill — Concrete22mmMax Drill — Wood28mmMax Drill — Steel13mmFunctions4 (Hammer Drill, Drill, Chisel, Flat Chisel)Battery Included1 x TEH 4Ah Li-ion

Warranty1 Year

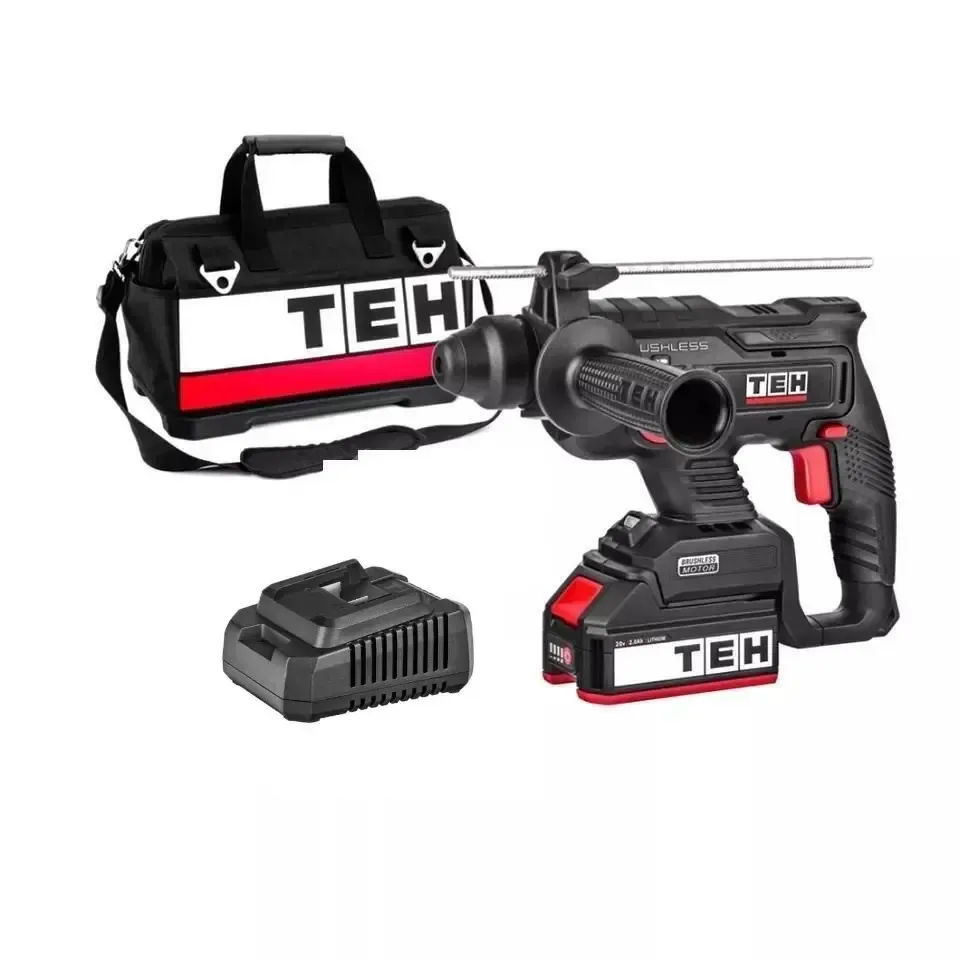

What's Included

• 1 x TEH LH220 Brushless SDS Rotary Hammer Drill
• 1 x TEH 20V 4Ah Li-ion Battery
• 1 x TEH Charger
• 1 x TEH Carry Bag

Perfect For

The LH220 is ideal for drilling into masonry walls, reinforced concrete, block and brickwork, installing structural fixings and anchor bolts, fitting cable management systems, installing radiators and pipework supports, and general masonry and concrete work on site. A practical choice for builders, structural engineers, plumbers, electricians and serious DIYers who need a brushless SDS hammer drill capable of handling the full range of masonry drilling tasks. Compatible with the full TEH 20V cordless range.

Also consider the TEH LH220 & LD105 Brushless Twin Kit for a combined hammer drill and combi drill in a single package, or the TEH LH160 4Ah Starter Kit for lighter masonry drilling tasks where a smaller, more compact SDS drill is required.

⚠️ Safety Reminder

Always wear safety glasses, gloves, hearing protection and a dust mask or respirator when drilling into masonry or concrete. Ensure SDS-Plus bits are fully inserted and locked before use. Remove the battery before changing bits or accessories. Always check for buried cables, pipes and services before drilling into any wall, floor or ceiling. Ensure the work surface is stable and secure before drilling or chiselling.
