TEH LH220 & LD105 20V Brushless Twin Kit — SDS Rotary Hammer & Combi Drill

TEH LH220 & LD105 20V Brushless SDS Rotary Hammer & Combi Drill Twin Kit

The TEH LH220 & LD105 Brushless Twin Kit pairs the two most essential drilling tools on any site — a brushless SDS rotary hammer and a brushless combi drill — both running on the same 20V lithium-ion platform. The LH220 delivers up to 4,600 BPM with a 22mm SDS chuck for drilling into masonry, brick and concrete, plus dedicated hammer drill, drill-only and chiselling modes. The LD105 handles all screwdriving, wood and metal drilling with 50Nm of torque, two speeds and 20+2 torque settings. Together they cover the full range of drilling and driving tasks on site — from fixing frames and drilling through blockwork to hanging doors and fitting kitchen units. This twin kit includes 1x 4Ah + 1x 2AH batteries, a charger and a TEH carry bag, ready to work straight from the box.

Key Features

• LH220: 22mm SDS Chuck — drills up to 22mm in concrete, 28mm in wood and 13mm in steel
• LH220: 0–4,600 BPM Impact Rate — fast, efficient penetration into masonry and concrete
• LH220: 4 Functions — hammer drill, drill only, chiselling and flat chisel adjustment
• LH220: 20V Brushless Motor — high-performance 48/20 brushless motor for extended service life and efficiency
• LD105: 50Nm Torque — handles screwdriving, fixing and drilling across wood, metal and plastic
• LD105: Two-Speed Gearbox (450/1,450 RPM) — low speed for controlled driving, high speed for fast drilling
• LD105: 20+2 Torque Settings — precise clutch control for delicate materials and fine fixing work
• Shared 20V Platform — both tools share the same TEH batteries, simplifying charging on site

Specifications

SpecificationLH220 SDS HammerLD105 Combi DrillVoltageDC 20VDC 20VMotorBrushless 48/20BrushlessChuck22mm SDS10mm KeylessNo-Load Speed0–1,300 RPM450 / 1,450 RPMImpact Rate0–4,600 BPM—Max Drill — Concrete22mm—Max Drill — Wood28mm—Max Drill — Steel13mm—Torque Settings—20+2Max Torque—50NmWarranty1 Year1 Year

What's Included

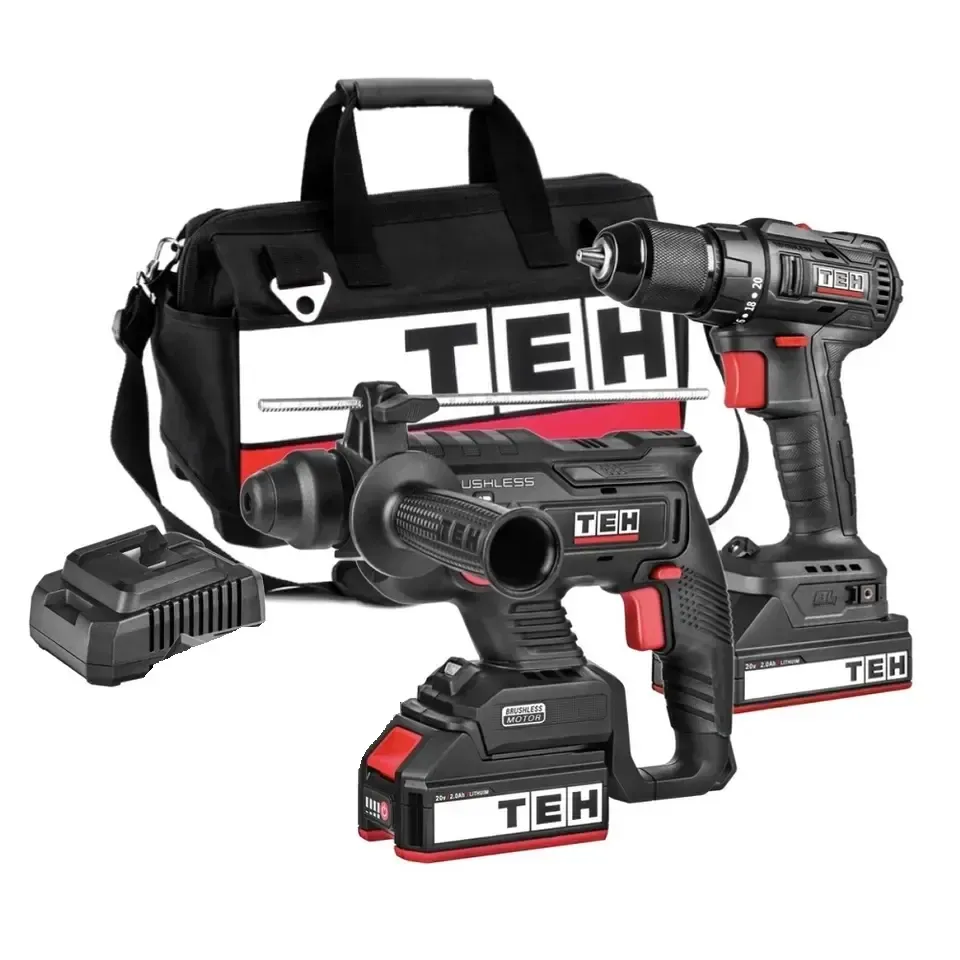

• 1 x TEH LH220 Brushless SDS Rotary Hammer Drill
• 1 x TEH LD105 Brushless Combi Drill
• 1x TEH 20V 2Ah Li-ion Battery
• 1x TEH 20V 4Ah Li-ion Battery
• 1 x TEH Charger
• 1 x TEH Carry Bag

Perfect For

The LH220 & LD105 Twin Kit is ideal for first-fix carpentry, masonry drilling, plastering fixings, kitchen and bathroom fitting, block and brickwork, structural fixing and general site maintenance. A practical choice for builders, joiners, plumbers, electricians and serious DIYers who need both a hammer drill and a combi drill working from the same battery platform. Compatible with the full TEH 20V cordless range.

Also consider the TEH 4-Piece Brushless Kit if you also need an angle grinder and impact wrench, or the TEH LH220 4Ah Starter Kit for longer hammer drilling sessions on masonry-heavy work.

⚠️ Safety Reminder

Always wear safety glasses, gloves, hearing protection and a dust mask when drilling into masonry or concrete. Ensure SDS bits are fully inserted and locked before use. Use only SDS-Plus rated bits in the LH220. Remove the battery before changing bits or accessories. Ensure the workpiece is secure and stable before drilling or chiselling.
